What are LED indicators on my NT

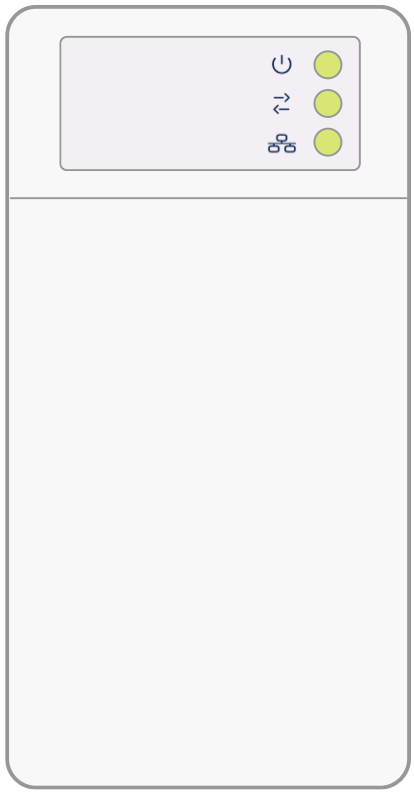

Genesis P1090
Power
On   Device is successfully powered
Off   Power is not connected

WAN
Brandt groen   Device receives fiber optic signal
Groenknippert   Data activity
Off   Device doesn’t receive fiber optic signal

LAN
Brandt groen   The connection is up at the speed of 1 Gbps
Brandt orange   The connection is up at the speed of 10/100 Mbps
Groenknippert   The connection is up at the speed of 1 Gbps, there is some traffic
Orangeknippert   The connection is up at the speed of 10/100 Mbps, there is some traffic
Off   The connection is down

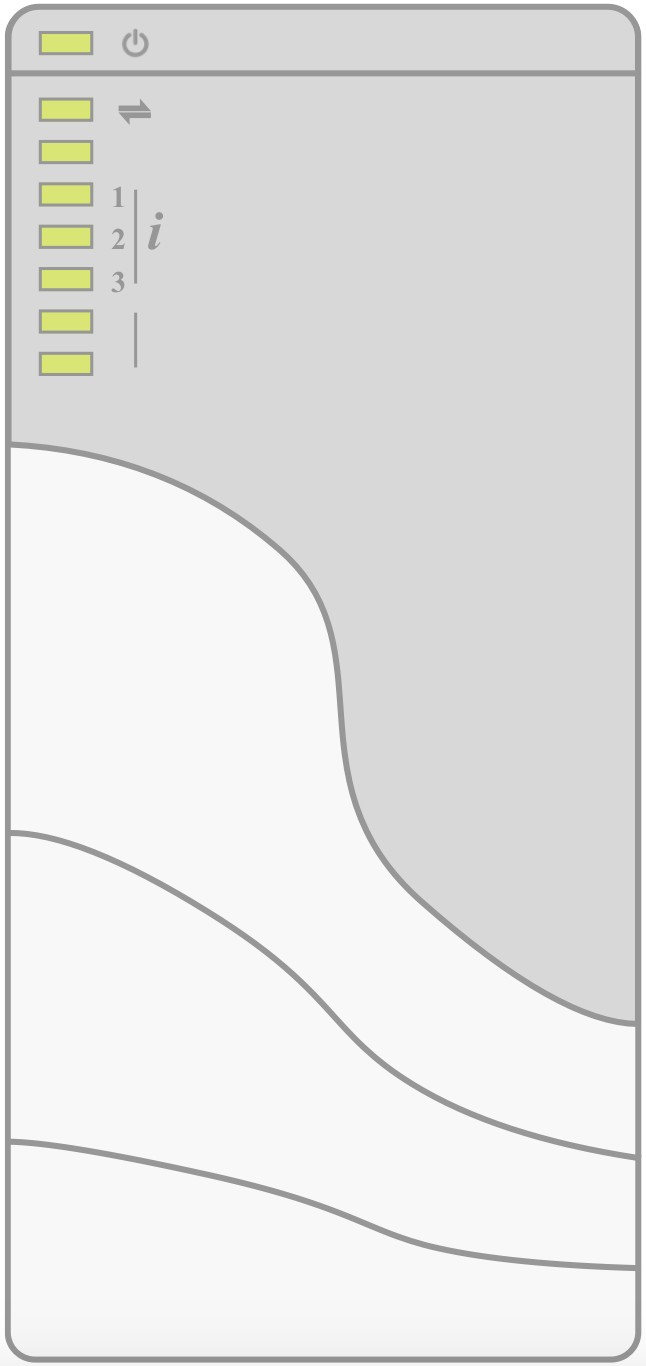

Genesis OCG-1012
Power
Brandt groen   Device is successfully powered
Groenknippert   Warning
Off   Power is not connected
Roodknippert   Hardware error

WAN
Brandt groen   Device receives fiber optic signal
Uit   Device doesn’t receive fiber optic signal

M1
Brandt groen   Provisioning OK
Groenknippert   Provisioning in progress
Uit   Provisioning inactive

M2
Brandt groen   Firmware update has been successfully done. Device will now reboot.
Groenknippert   Firmware update is being done
Uit   No firmware update ongoing

M3
Brandt groen   Routing OK
Groenknippert   Routing initialization in progress
Uit   Routing inactive
